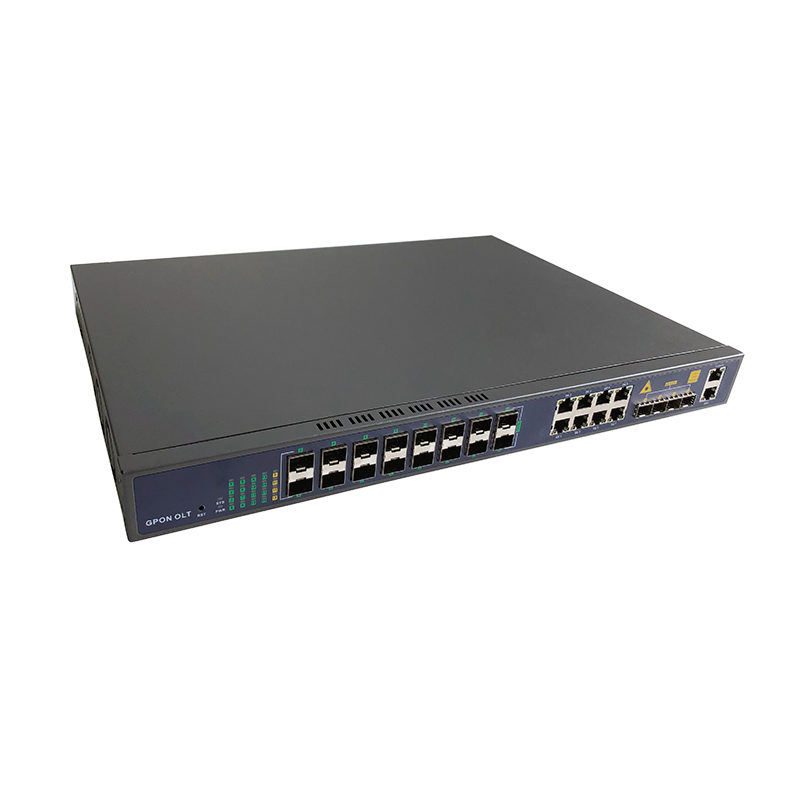

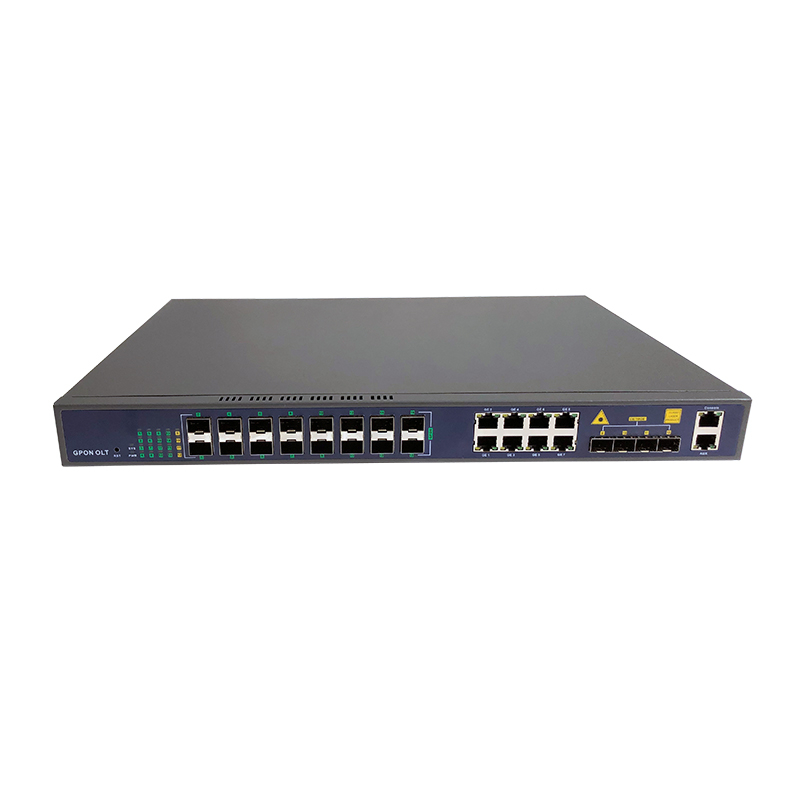

16-Port GPON OLT
Product Description

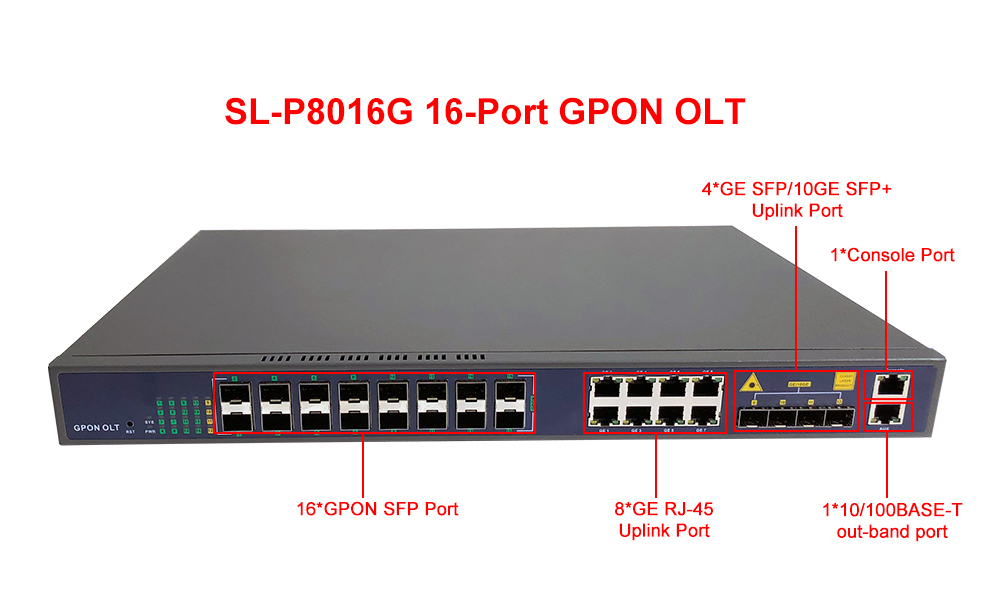

SL-P8016G GPON OLT provides 16 GPON ports, 8GE copper RJ45 Ethernet ports and 4*GE(SFP)/4*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
SL-P8016G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Independent 1U chassis equipment with 16 PON ports, each port supports up to 128 ONUs, the whole device supports up to 2048 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.
Features
1U 19-inch box GPON OLT with 16 PON ports
Comply with ITU-T G984 / G.988 standard
L3 function, support for static routing, RIP v1 / v2, OSFP v2, ARP agent
Tcont DBA, Gemport traffic
QoS based on port, VID, TOS, and MAC addresses
Support for VLAN Tag / UnTag, VLAN transmission, QinQ
Support for IGMP listening, 256 IP multicast groups, IGMP agent
Support for 802.1D and 802.1W
Support for static LACP
Professional design to prevent system failure and keep the system stable
Supports port-based rate restriction and bandwidth control
Support for data encryption, multicast, port VLAN, separation, RSTP, etc
Support for dynamic bandwidth allocation (DBA)
Support for ONU automatic discovery / link detection / software remote upgrade
Support for ONT automatic discovery, automatic configuration
Support for the ONT firmware can be automatically upgraded to download the ONT firmware to the OLT from the web / tftp / ftp
Support for SNMP, telnet, CLI, OMCI / OAM, and Web management
Support for ACL and SNMP, flexible configuration of package filters
Support the broadcast storm resistance function
Firewall function
Support for remote software upgrades
Support the power-off alarm function, to facilitate the detection of link problems
Support industrial temperature
Technical Specifications
Parameter | Specifications |
PON standard | GPON ITU-T G.984.x,G.988 |
PON interface | 16*GPON SFP Ports(C+) , Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3 ~ +7dBmTransmission distance: 20KM. Max splitting ratio1:128 |
Upstream 2.488G,Downstream 1.244G | |
Wavelength | Tx1490nm, Rx 1310nm |
Uplink | 8*copper Ethernet ports 10/100/1000M auto-negotiation |
4*GE(SFP)/ 10GE (SFP+) auto-detection | |
Layer 3 | Support static route, RIP v1/v2, OSFP v2, ARP proxy |
Backplane | 128Gbps |
MAC table | 32K |
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
Management Mode | SNMP, Telnet, CLI, WEB |
VLAN | Tag / Un-tag,VLAN transmission,QinQ |
Operating condition | Operating temp: -5 ℃~ +55℃ |
Storing condition | Storing temp: -40℃ ~ +85℃ |
Humidity | 5~90%(non-condensing) |
Power consumption | AC100~240V, 47/63Hz(DC:-48V Option) |
Power consumption | ≤85W |
Dimension | 445mm×321mm×46mm(L×W×H) |
Net weight | 5.25Kg |
