4GE+AC1200 WiFi 5+CATV+WDM+AGC
Overview
lSL-800GWT is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
lSL-800GWT is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
lSL-800GWT adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
lSL-800GWT is designed by Realtek chipset 9607C.
Feature
lSupports GPON and EPON auto detection
lSupport Rogue ONT detection
lSupport Route mode PPPoE/DHCP/Static IP and Bridge mixed mode
lSupport NAT, Firewall function.
lSupport Internet, IPTV and CATV services automatically bound to ONT ports
lSupport Virtual server, DMZ, and DDNS, UPnP
lSupport Filtering based on MAC/IP/URL
lSupport 802.11 b/g/n, 802.11ac WIFI(2x2 MIMO) function and Multiple SSID
lSupport Flow & Storm Control , Loop Detection and Port Forwarding
lSupport IPv4/IPv6 dual stack and DS-Lite
lSupport IGMP transparent/snooping/proxy
lSupport TR069 Remote Configuration and maintenance
lSupport CATV remote management from OLT
lIntegrated OAM remote configuration and maintenance function
lCompatible with popular OLT (HW, ZTE, FiberHome...)
Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |

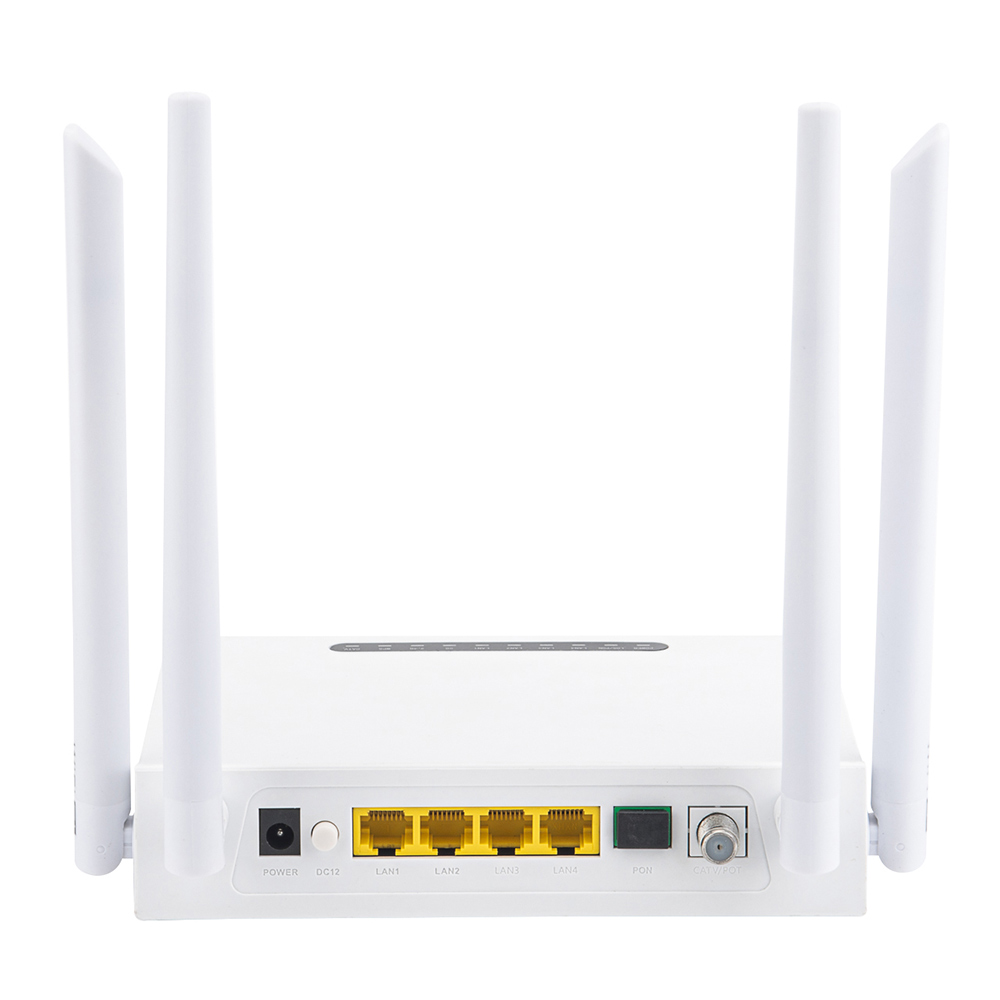

LAN interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector |
WIFI Interface | IEEE 802.11 b/g/n (2.4G) IEEE 802.11 a/n/ac (5G) 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO(2.4G&5G), 5dBi external antenna Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G) Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥60dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), >35(-10dBm) |

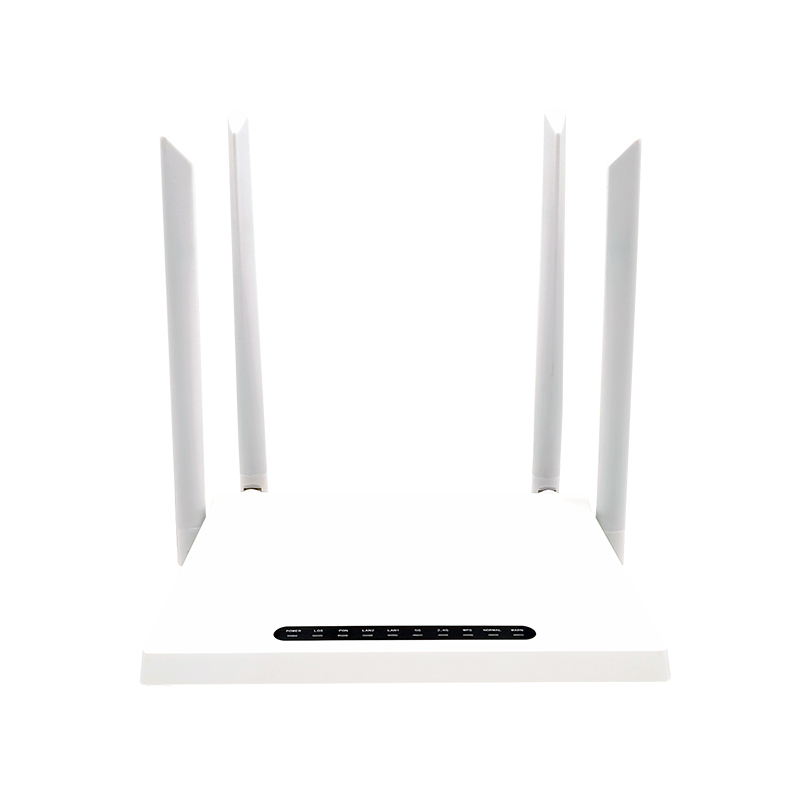

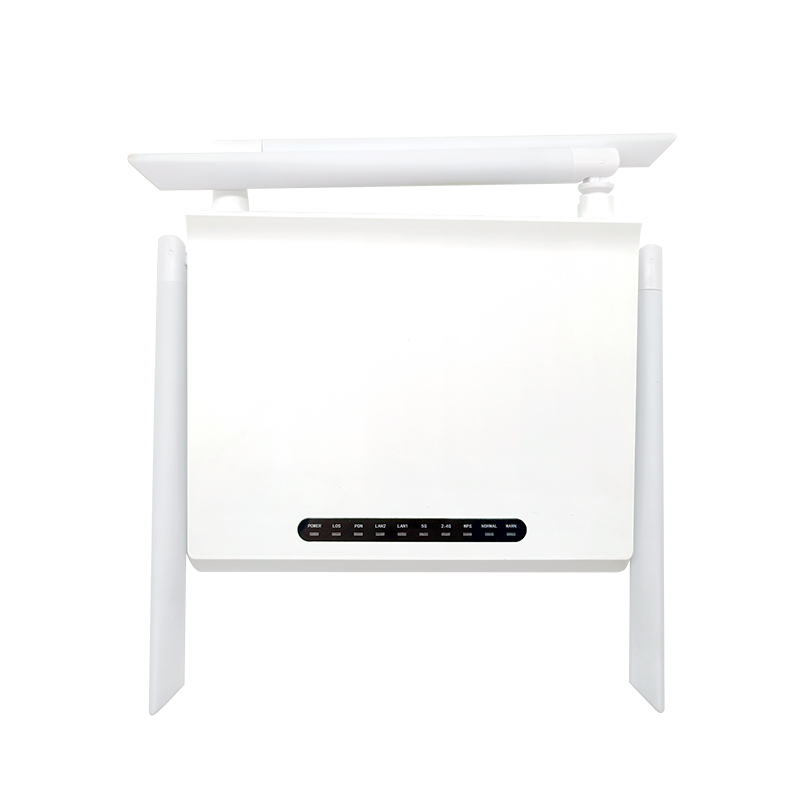

LED | 10 LED, For Status of PWR、LOS、PON、LAN1、LAN2、LAN3、LAN4、2.4G、5.8G、 Normal(CATV) |
Push-Button | 3 button for Function of Power on/off, Reset, WPS |
Operating condition | Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing) |
Storing Condition | Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.3kg |
