GPON interface（NNI）：1 x GPON interface |
Optical port | ITU-T G.984 GPON standards，Flexible mapping between GEM Port and TCONT |
Optical connector | SC/APC or SC/UPC |
Receiving Sensitivity | -27dBm |
Overload optical power | -8 dBm |
Transmitting Optical Power | 0.5~5dBm |
Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
Wavelength | Receiving（DOWN）:1490nm；Transmitting（UP）:1310nm |

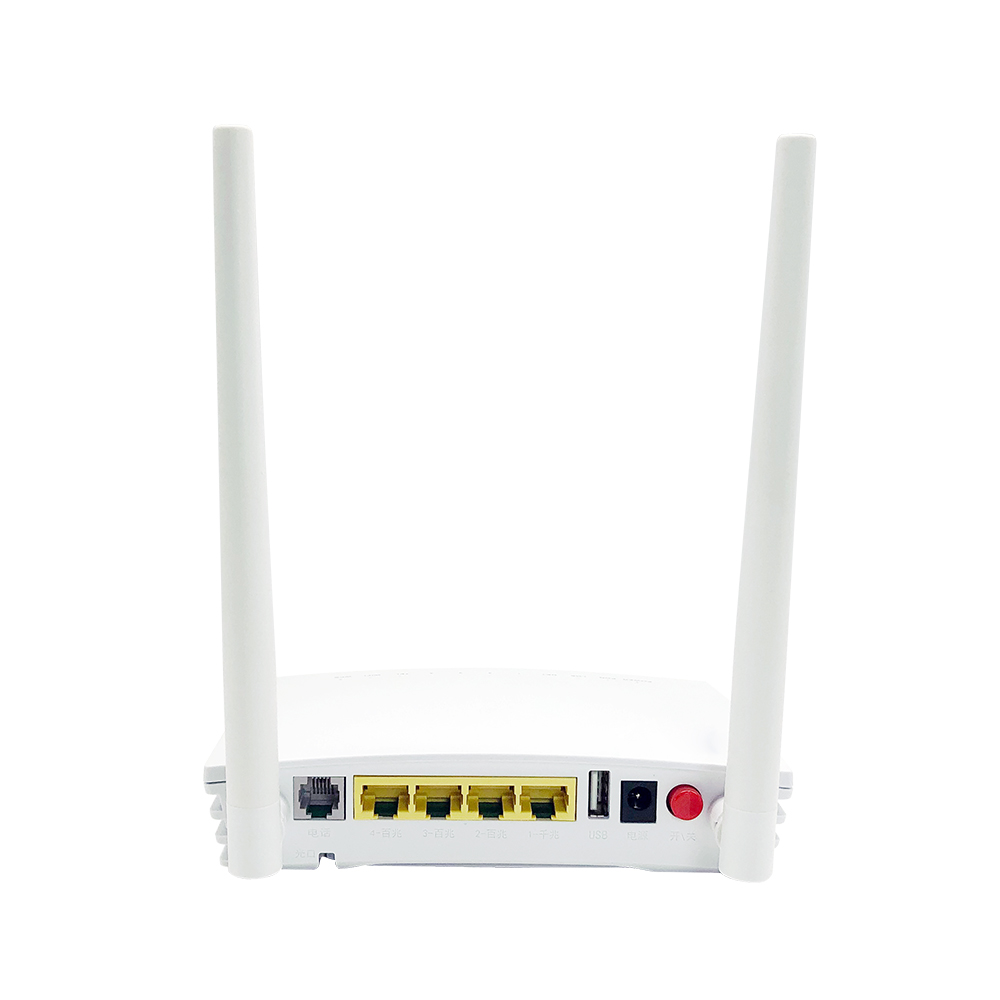

User Network Interface（UNI）：1GE+3FE+1POTS+WIFI+1USB |
Ethernet Port | • Ethernet port-based VLAN tags and tag removal |
• VLAN transparent transmission |
• Q-in-Q |
• MAC address learning |
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
POTS Port | • SIP/H.248 |
• Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls. |
• G.711A/U, G.729 and G.722 encoding/decoding |
• T.30/T.38/G.711 fax mode |
• SDP protocol (RFC 2327 and RFC 4566) |
• DTMF |
WLAN | • IEEE 802.11 b/g/n (2.4G) |
• 2 × 2 MIMO |
• Antenna gain: 5 dBi，double external antenna |
• Air interface rate:300 Mbit/s |
• WMM |
• Multiple SSIDs |
• WPS |
USB port | • USB2.0，USB backup |
• FTP-based network storage |
• File/Print sharing based on SAMBA |
• UPnP |
Product Function |
GPON | • ITU-T G.984.1-4 |
• ITU-T G.988 |
• 32 TCONTs /256GEM ports |
• 8 Egress queues per TCONT at least |
• VLAN or VLAN plus priority gem mapping mode |
• SN/Password authentication |
• Performance monitoring: eth/Gem port |
• Dying gasp |
Layer 2 Features | • MAC learning (SVL)/aging |
• Support max frame length to 1518 bytes |
• VLAN tagging for untagged packets |
• Support VLAN 1-4094 |
• VLAN transparent/translation |
Layer 3 Features | • PPPoE/Static IP/DHCP/Bridge |
• NAT/NAPT |
• Port forwarding |
• ALG, UPnP |
• DDNS/DNS server/DNS client |
• IPv6/IPv4 dual stack,and DS-Lite |
• Static/Dynamic/Default routes |
• Multiple services on one WAN port |
• RIPv2 with passive mode |
Multicast | • IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376 |
• IGMP snooping and IGMP Proxy |
• MLD v1/v2 |
Qos | • Support 8 Queues with Strict Priority |
• Ethernet port rate limitation |
• 802.1ppriority |
• SP/WRR/SP+WRR |
• Service flow classification |
Security | • Firewall |
• MAC/Port/URL Filter |
Management | •OMCI/TR069 |
• Web UI（Http by LAN-Side and WAN-Side） |
• Telnet（Telnet by LAN-Side and WAN-Side） |
• SSH management with CLI commands |
• Dual-system software backup and rollback |
Physical Performance |
Dimensions (H x W x D) | 3CM*15.5CM*11.5CM(without external antenna and pads) |
Weight | About 200g |
Working temperature | 0°C ~ 40°C |
Working humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 V AC, 50 / 60 Hz |
System power supply | 12V DC, 1.0A |
Power consumption | <10W |
System Configuration |
|
Main chip | ZTE ZXIC ZX279127@800Mhz / ZTE ZXIC ZX279127S@1000Mhz |
RAM | 256MB DDR3 |
Flash | 256MB NAND |
WiFi Chip | MTK MT7603EN |
