1-Port GPON OLT
Product Description

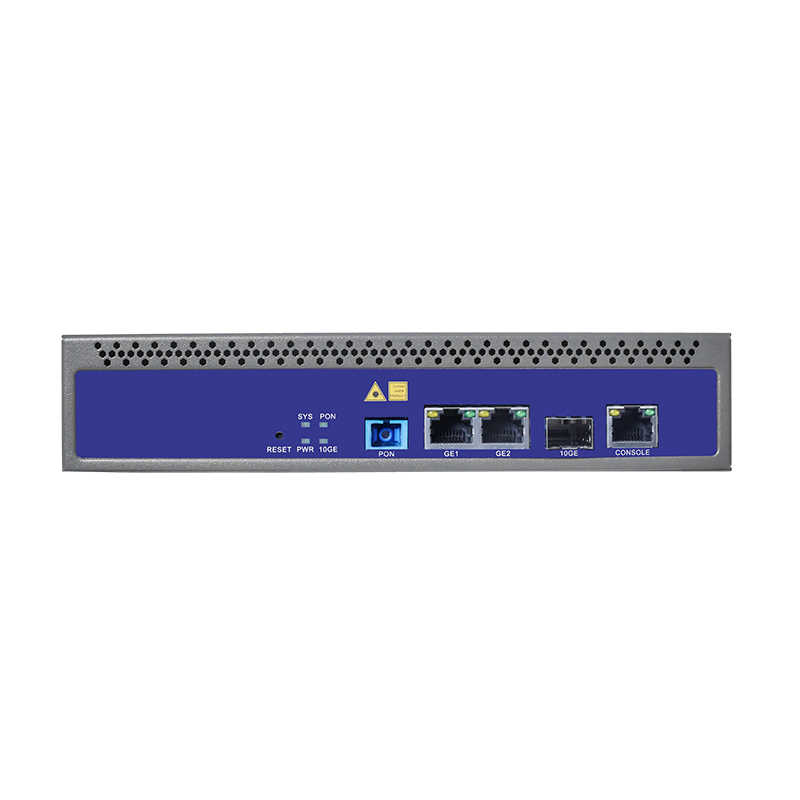

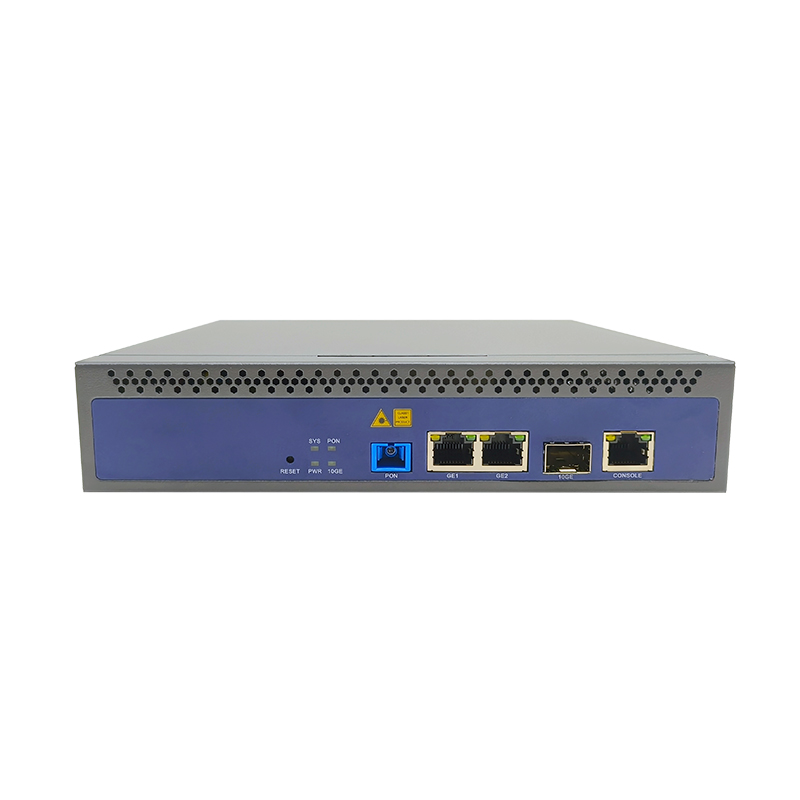

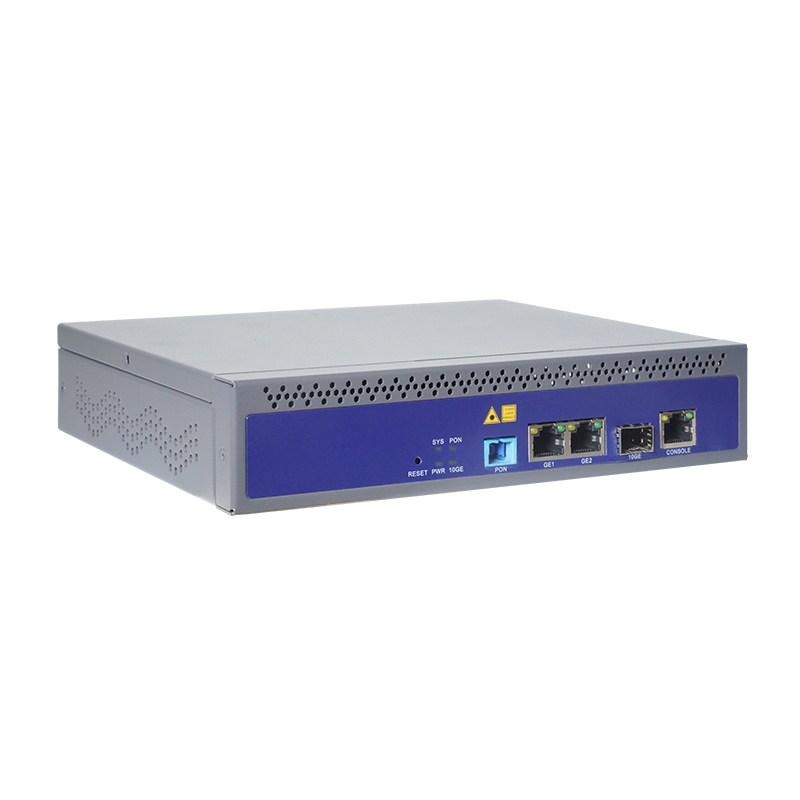

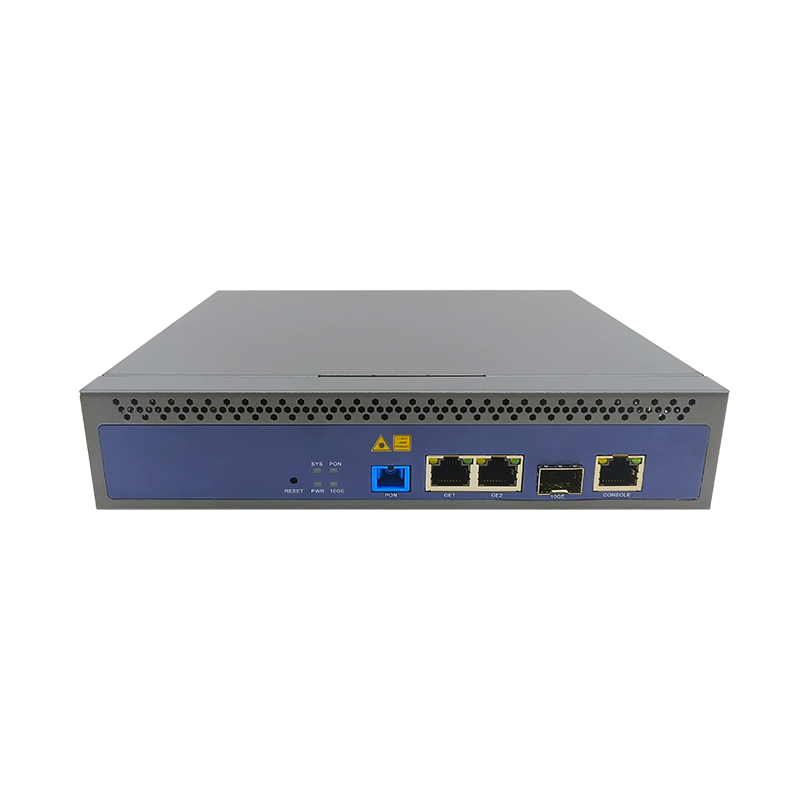

SL-P8001G GPON OLT provides 1 GPON ports, 2GE copper RJ45 Ethernet ports and 1*GE(SFP)/10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
SL-P8001G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.

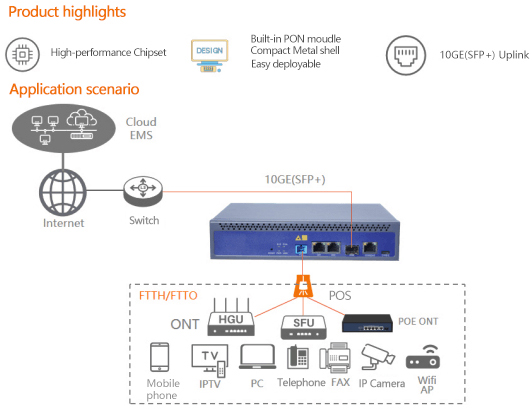

Independent 1U chassis equipment with 1 PON ports, the device supports up to 128 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.
Technical Specifications
Parameter | Specifications |
PON standard | GPON ITU-T G.984.x,G.988 |
PON interface | 1*GPON Ports(C++/C+++),SC/UPC,distance: 20KM. Max splitting ratio1:128 |
Upstream 2.488G,Downstream 1.244G | |
Wavelength | Tx1490nm, Rx 1310nm |
Uplink | 2*copper Ethernet ports 10/100/1000M auto-negotiation |
1*GE(SFP)/10GE(SFP+) auto-detection | |
Management Ports | 1*CONSOLE port |
Management Mode | Telnet, CLI, WEB |
VLAN | Tag / Un-tag,VLAN transmission |
Backplane | 16Gbps |
MAC table | 1K |
Throughput | 23.808 Mpps |
Operating condition | Operating temp: -5 ℃~ +55℃ |
Storing condition | Storing temp: -40℃ ~ +85℃ |
Humidity | 10~85%(non-condensing) |
Power consumption | DC12V,2.5A |
Dimension | 224mm×199mm×43.6mm(L×W×H) |
Net weight | 1.07Kg |
