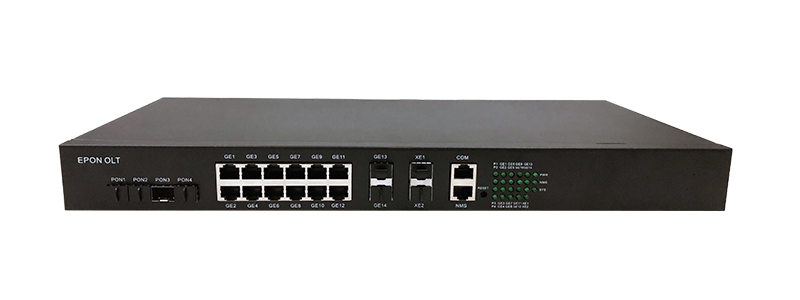

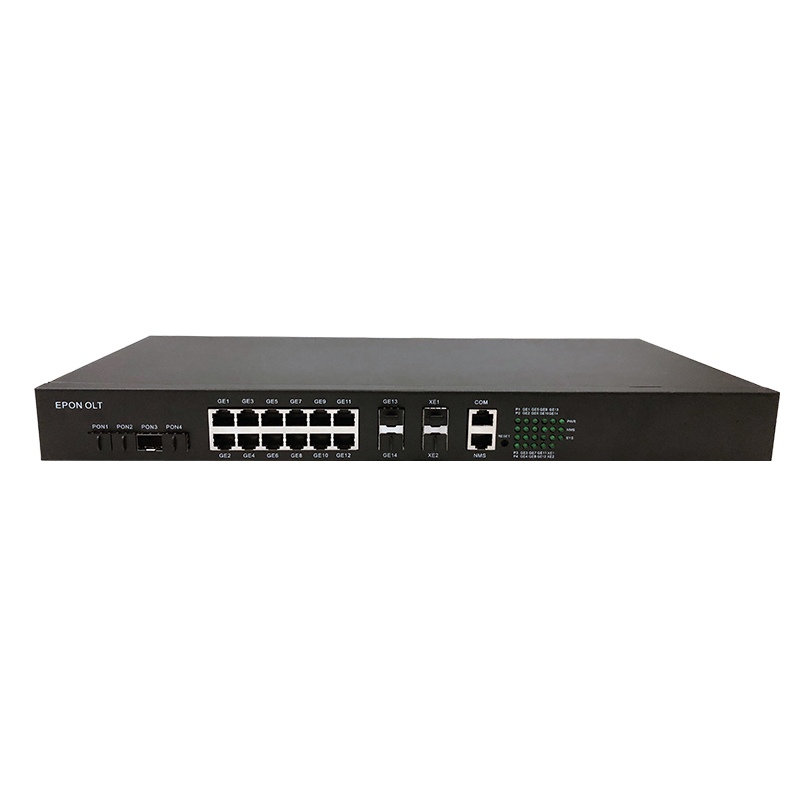

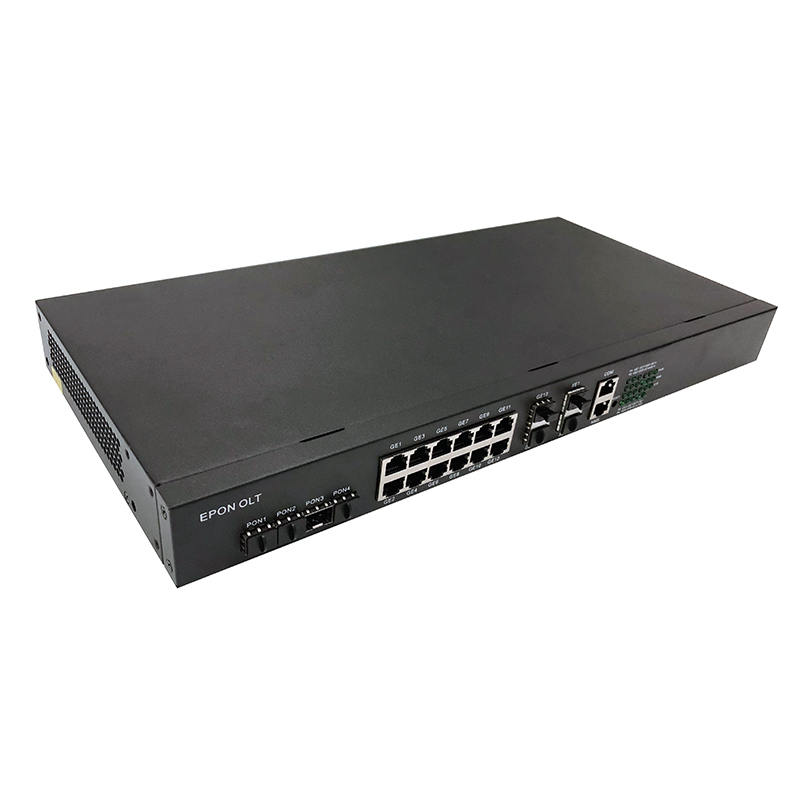

SL-P8004E

Operating wavelength

1310(RX) /1490(TX)

Optical power

+2.5 ~ +7dBm

Receiving sensitivity

-30dBm

Wavelength

Tx1490nm, Rx 1310nm

Max distance

20km

Max splitter ratio

1:64

Capacity

4 PON, maximum 256pcs ONU

Backplane

128Gbps

MAC

32K

Uplink port

12*GE(RJ-45)+2*GE(SFP)+2*10GE(SFP+)

PON port

4 SFP 1000BASE-PX20+, Symmetrical 1.25Gbps

Control port

1 10/100/1000M RJ45 port，1 Console(RJ45), to debug the device

MTBF

100,000 hours

EPON traits

Support IEEE802.3ah

Support DBA with minimum1Kbps granularity adjustable

Support 1Gbps up link and down link symmetrical bandwidth

Support AES-128 encryption to each Logical Link Identifier

Support powerful OAM function, implement telnet management, maintenance and upgrade

Support auto discovery and auto register of ONU (real-time operation)

Protocols supported

Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z

Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree

Support IEEE 802.1P QoS、IEEE802.3X Flow Control

Support IEEE802.3ad Trunk、IEEE802.1W RSTP

Network management

Support GUI management based on SNMP

Support WEB and Telnet GUI management based on CLI

Other functions

Support 1GMPv1/v2 protocol report, query and leave message mouse

Support DHCP Snooping

Support Ipv4 address learning based at DHCP Snooping

Support ARP Snooping, QoS etc

Backplane

128Gbps

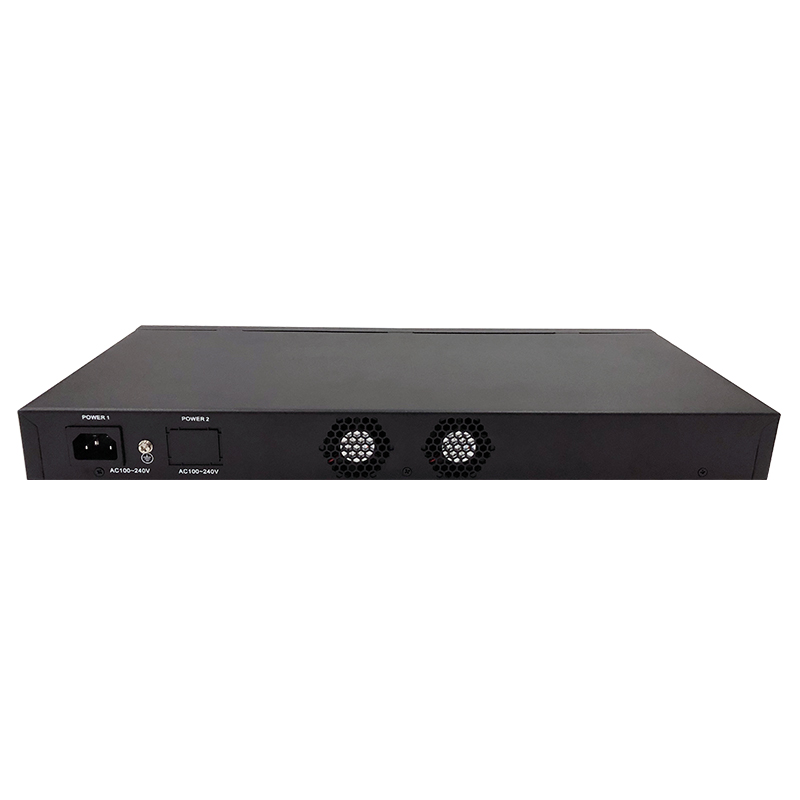

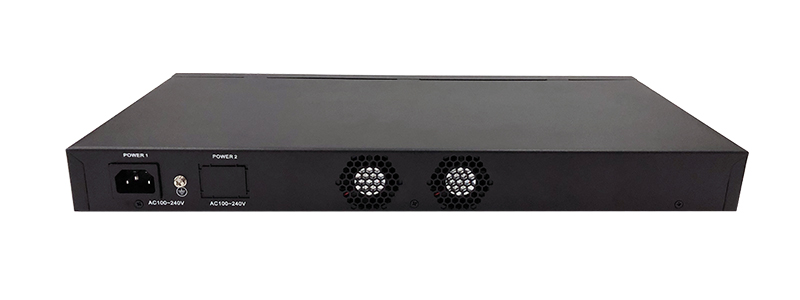

Power

AC100~240V 50/60HZ、DC12V/5A redundant three power supply

Power Consumption

<30W

Operating temperature

-5℃ —55 ℃

Storage temperature

-40℃ —85 ℃

Humidity

5%--90% non-condensing

Dimension

442mm(length) * 212mm(width) * 44mm(height)

 Weight

2.35Kg
