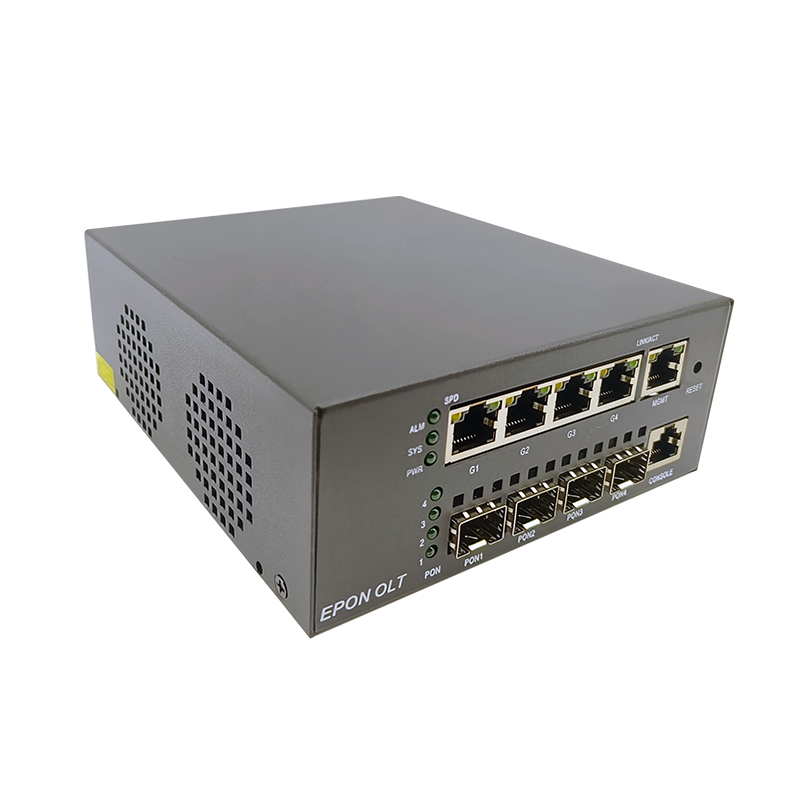

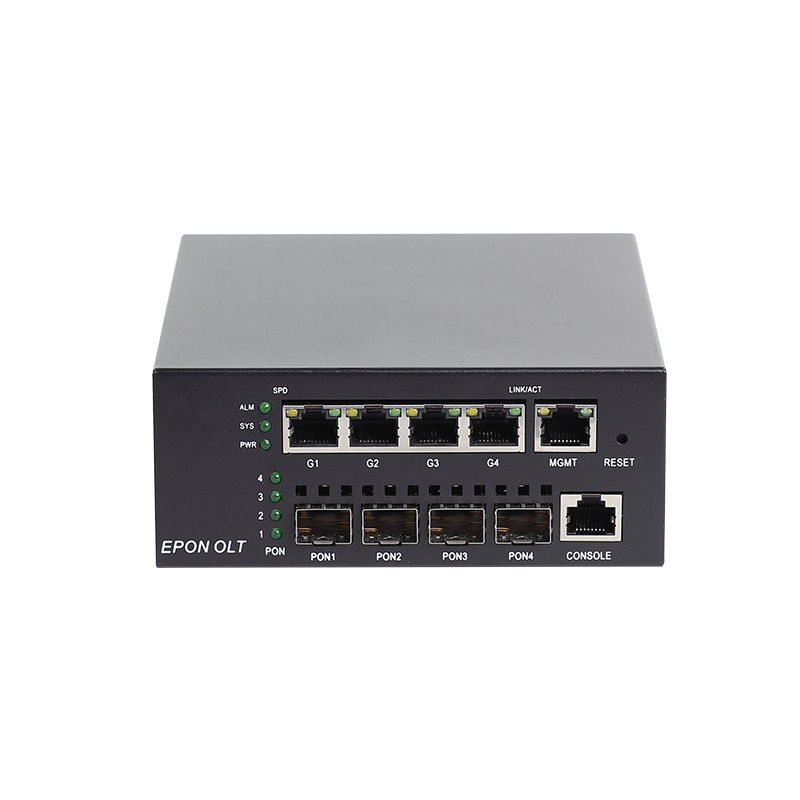

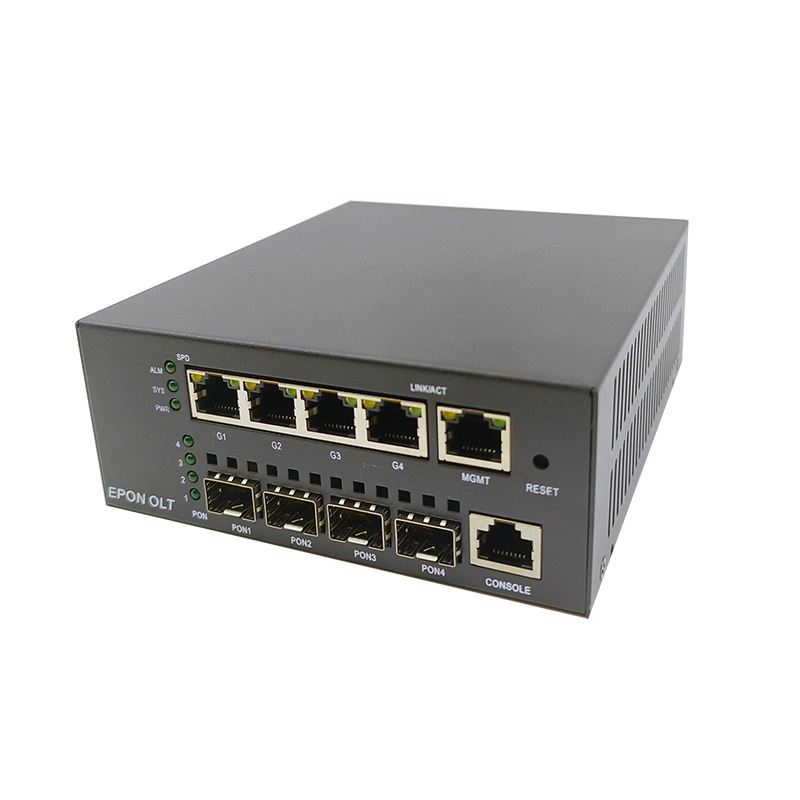

4-Port Mini EPON OLT
Feature

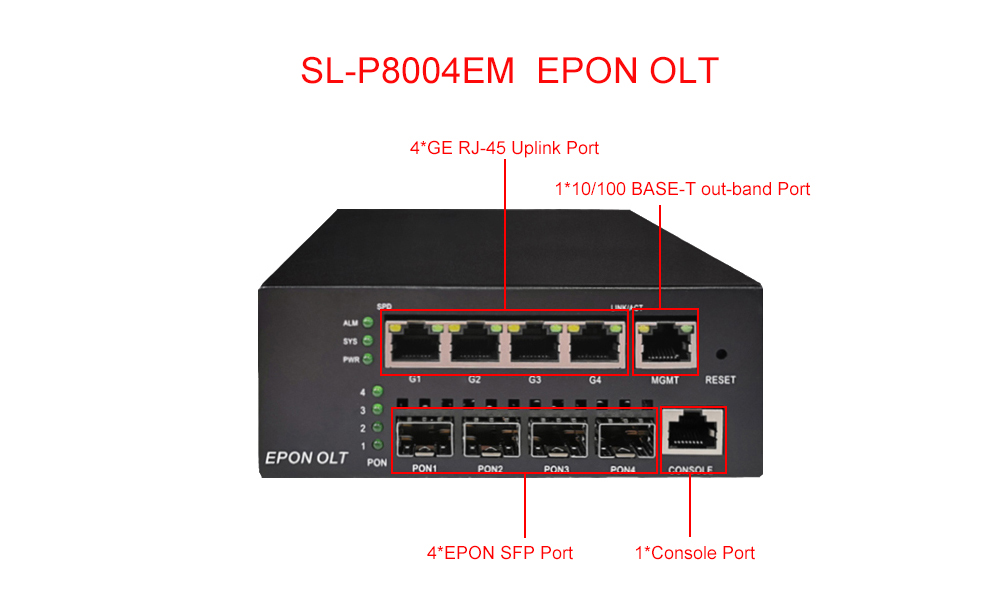

Supply 4 SFP PON ports, 4 *1000M RJ45 uplink ports
Each PON port support 1:64 split ratio, total 256 ONUs access
Distance can reach 20km under 1:32 split ratio
Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Technical Specifications
Parameter | Specification |
Operating wavelength | 1310(RX) /1490(TX) |
Optical power | +2.5 ~ +7dBm |
Receiving sensitivity | -30dBm |
Max distance | 20km |
Max splitter ratio | 1:64 |
Capacity | 4 PON, maximum 256pcs ONU |
MAC | 8k |
Uplink port | 4 *1000M RJ45 uplink |
PON port | 4 SFP PON ports |
Control port | 1 10/100/1000M RJ45 port |
MTBF | 100,000 hours |
| Support IEEE802.3ah |
Support DBA with minimum1Kbps granularity adjustable | |
Support 1Gbps up link and down link symmetrical bandwidth | |
Support AES-128 encryption to each Logical Link Identifier | |
Support powerful OAM function, implement telnet management, maintenance and upgrade | |
Support auto discovery and auto register of ONU (real-time operation) | |
| Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z |
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree | |
Support IEEE 802.1P QoS、IEEE802.3X Flow Control | |
Support IEEE802.3ad Trunk、IEEE802.1W RSTP | |
| Support GUI management based on SNMP |
Support WEB and Telnet GUI management based on CLI | |
| Support 1GMPv1/v2 protocol report, query and leave message mouse |
Support ONU remote configure and upgrade | |
Support real-time alarm detection, accurate fault location | |
Support the alarm information sent to the mailbox, support SMS alarm | |
Power supply | AC100 -240V(built-in) |
Power consumption | 20W |
Operating temperature | -10~55℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 150mm(length) ×133mm(width) ×53mm(height) |
