Product Description

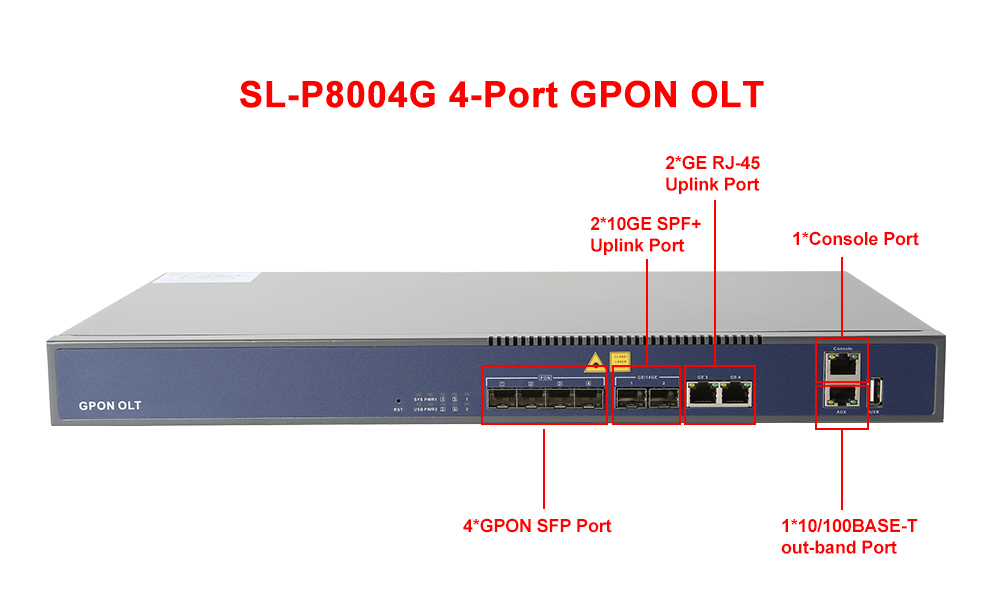

SL-P8004G GPON OLT provides 4 GPON ports, 2GE copper RJ45 Ethernet ports and 2*GE(SFP)/10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
SL-P8004G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Independent 1U chassis equipment with 4 PON ports, each port supports up to 128 ONUs, the whole device supports up to 512 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.
Features
* 1U 19 inch standard chassis GPON OLT with 4PON ports
* Compliant with ITU-T G984/G.988 standards
* Friendly EMS/Web/Telnet/CLI management
* Support other brands GPON and XPON ONUs
* Support 4096 VLANs, port VLAN and protocol VLAN;
* Support storm control based on port;
* Support port isolation,port rate limitation;
* Support static LACP;QoS based on port, VID, TOS and MAC address;
* Access control list;* Support IGMP snooping, 256 IP Multicast Groups,DHCP snooping
* Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
* Support power-off alarm function, easy for link problem detection;
* Support broadcasting storm resistance function;
* Support port isolation between different ports;
Technical Specifications
Parameter | Specifications |
PON standard | GPON ITU-T G.984.x，G.988 |
PON interface | 4*GPON SFP Ports（C+） , Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3 ~ +7dBmTransmission distance: 20KM. Max splitting ratio1:128 |
Upstream 2.488G，Downstream 1.244G |
Wavelength | Tx1490nm, Rx 1310nm |
Uplink | 2*copper Ethernet ports 10/100/1000M auto-negotiation |
2*GE(SFP)/10GE(SFP+) auto-detection |
Layer 3 | Support static route, RIP v1/v2, OSFP v2, ARP proxy |
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
Management Mode | SNMP, Telnet, CLI, WEB |
VLAN | Tag / Un-tag,VLAN transmission,QinQ |
Backplane | 128Gbps |
MAC table | 16K |
Operating condition | Operating temp: -5 ℃~ +55℃ |
Storing condition | Storing temp: -40℃ ~ +85℃ |
Humidity | 5~90%(non-condensing) |
Power consumption | AC100～240V, 47/63Hz(DC:-48V Option) |
Power consumption | ≤25W |
Dimension | 442mm×212mm×44mm（L×W×H） |
Net weight | 2.35Kg |
