8-Port EPON OLT
Product Description

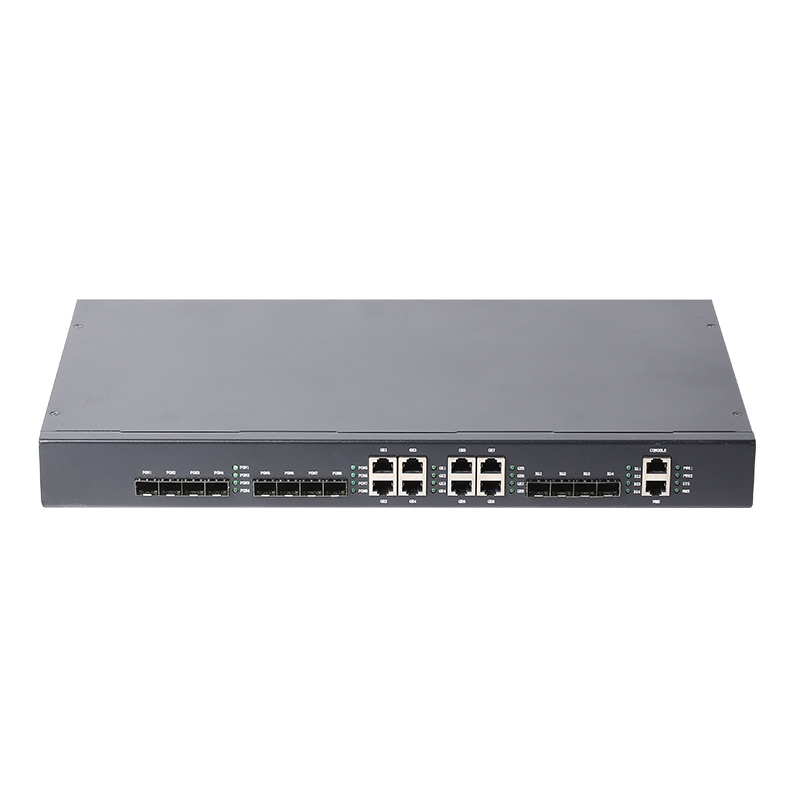

SL-P8008E EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. SL-P8008E provides 8 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4 *10G SFP for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.
It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom ctc standard.
SL-P8008E EPON OLT series possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.
Feature

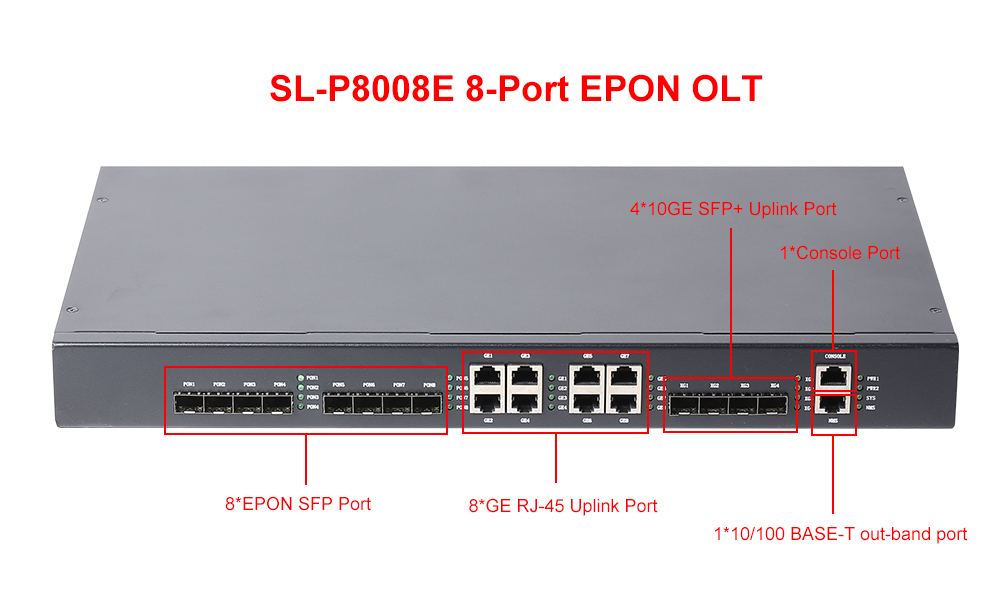

Supply 8 SFP EPON ports, 8 GE RJ-45 uplink ports, 4 10G SPF+ uplink ports
Support SNMP management and WEB ,CLI management
Each PON port support maximum 1:64 split ratio, total 512 ONUs access
Distance can reach 20km under 1:32 split ratio, in 10km maximum 1:64
Support to work with different brands ONUs to establish passive network
1U rack design, inside fan,better for heat dissipating and reliability operating
Support QoS, IPV4,multicast,loop protection
Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Technical Specifications
Parameter | Specification |
Service Port | 8 * EPON SFP port, 8 * GE RJ-45 Uplink Port, 4*10G SFP+ Uplink Port 1 console port |

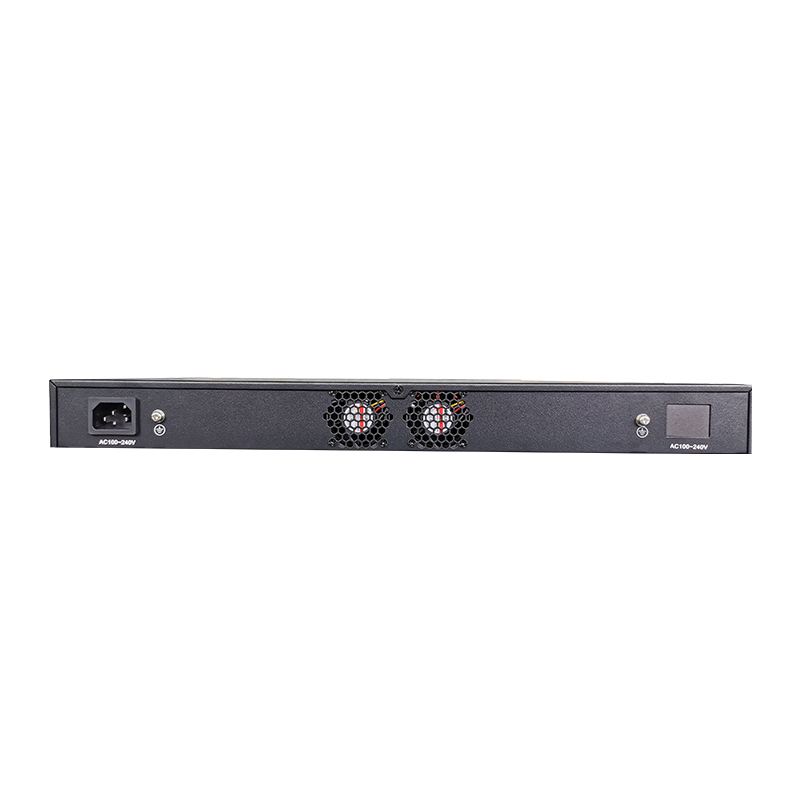

Power Supply | AC:100~240V * 2 47/63Hz |
Power Consumption | ≤45W |
Dimensions (Width x Depth x Height) | 440mm×44mm×260mm |
Weight (Full-Loaded) | ≤4.5kg |
Environmental Requirements | Working temperature: - 10°C~55°C Storage temperature: -40°C~70°C Relative humidity: 10%~90%, non-condensing |
PON Features | IEEE 802.3ah EPON China Telecom/Unicom EPON Maximum 20 Km PON transmission distance Each PON port supports the max 1:64 splitting ratio Uplink and downlink triple churning encrypted function with 128Bits |
Backplane | 128Gbps |
MAC | MAC Black Hole Port MAC Limit 16K MAC address |
VLAN | 4K VLAN entries Port-based/MAC-based/protocol/IP subnet-based QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark PVLAN to realize port isolation and saving public-vlan resources |
Spanning Tree | STP/RSTP Remote loop detecting |
Port | Bi-directional bandwidth control for onu Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring |
Device Security | Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP SSHv2 Secure Shell Security IP login through Telnet |
Network Security | User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding |
