Product Description

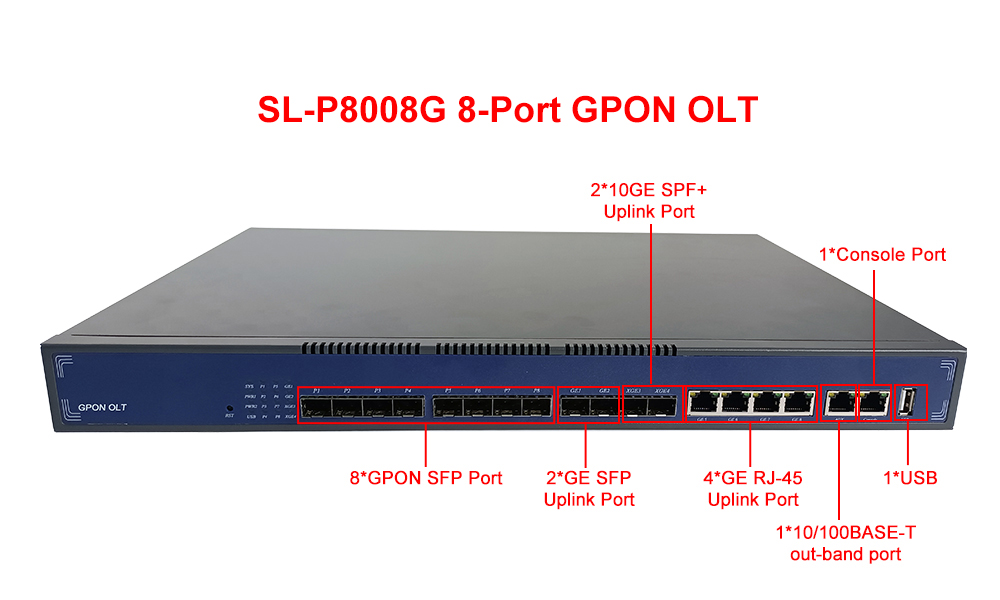

SL-P8008G GPON OLT provides 8 GPON ports, 8GE copper RJ45 Ethernet ports , 6 SFP(GE) and 2*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
SL-P8008G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.
Features

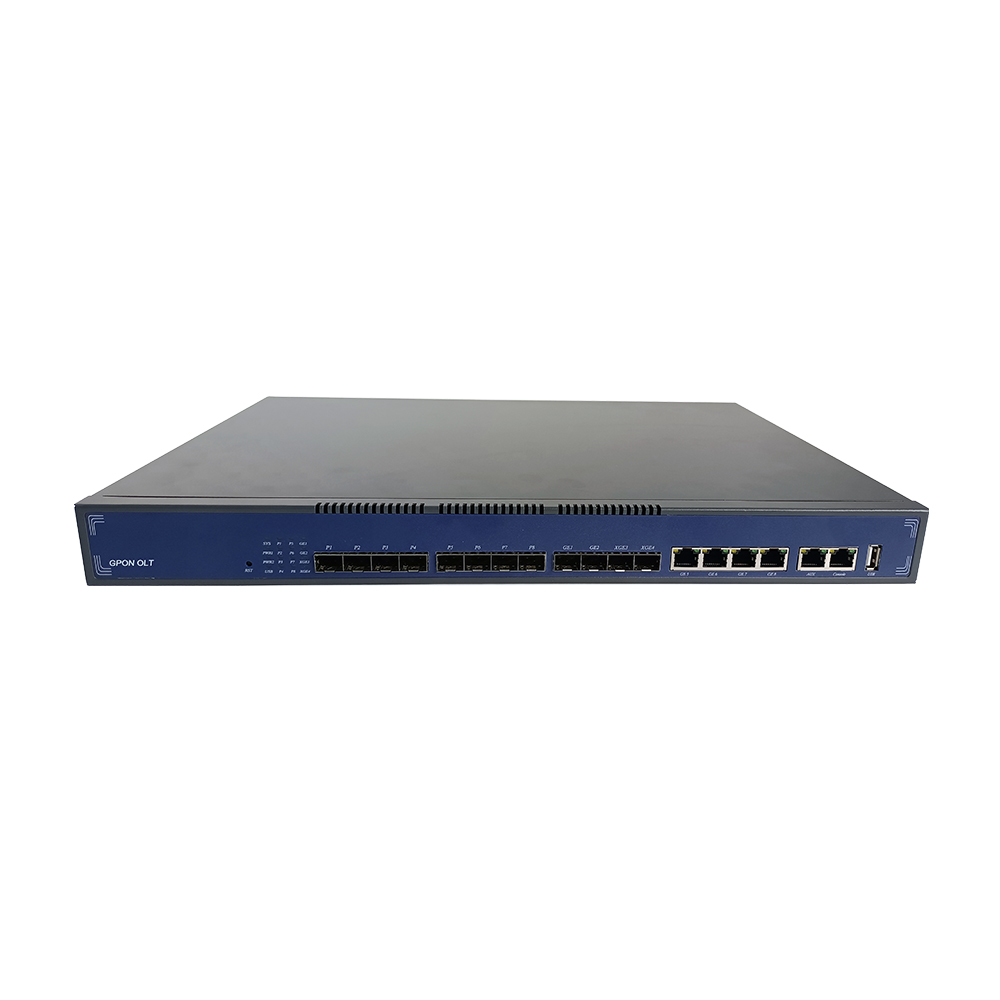

1U 19 inch standard box GPON OLT with 8 PON ports
Compliant with ITU-T G984/G.988 standards
L3 function, support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes
Tcont DBA, Gemport traffic
QoS based on port, VID, TOS and MAC address(16K Mac address)
Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
Support IGMP snooping, IGMP Proxy
Specialized design for system breakdown prevention to maintain stable system
Support port-based rate limitation and bandwidth control
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/link detection/remote upgrade of software
Support ONT automatically discovery, auto configuration
Support SNMP, telnet, CLI, OMCI/OAM and Web management
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance function
Firewall function
Support remote software upgrade

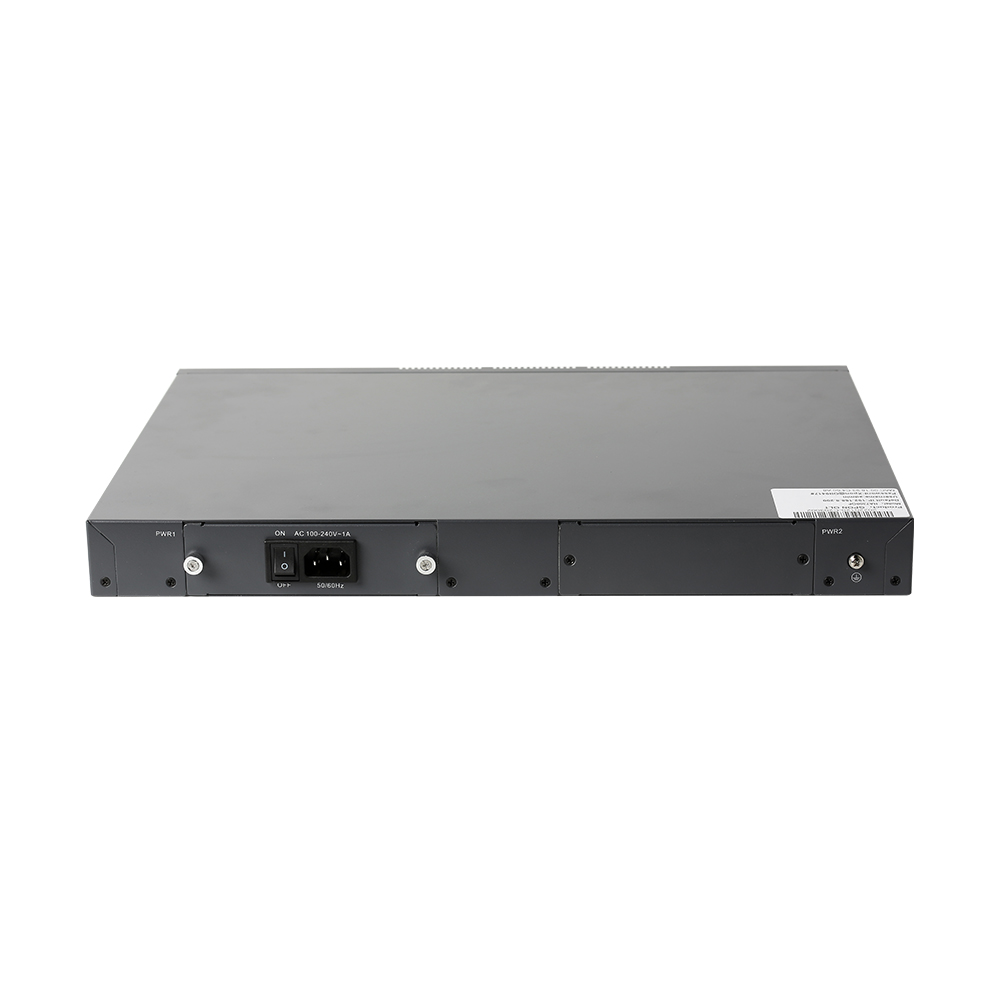

Two power supply redundancy design
Technical Specifications
Parameter | Specifications |
PON standard | GPON ITU-T G.984.x，G.988 |
PON interface | 16*GPON SFP Ports（C+） , Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3 ~ +7dBmTransmission distance: 20KM. Max splitting ratio1:128 |
Upstream 2.488G，Downstream 1.244G |
Wavelength | Tx1490nm, Rx 1310nm |
Uplink | 4*copper Ethernet ports 10/100/1000M auto-negotiation |
2*GE(SFP) |
2*10GE(SFP+) |
Layer 3 | Support static route, RIP v1/v2, OSFP v2, ARP proxy |
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
Management Mode | SNMP, Telnet, CLI, WEB、SSHv1/v2 |
Backplane | 128Gbps |
MAC table | 16K |
VLAN | Tag / Un-tag,VLAN transmission,QinQ |
Operating condition | Operating temp: -5 ℃~ +55℃ |
Storing condition | Storing temp: -40℃ ~ +85℃ |
Humidity | 5~90%(non-condensing) |
Power consumption | AC100～240V, 47/63Hz(DC:-48V Option) |
Power consumption | ≤45W |
Dimension | 445mm×321mm×46mm（L×W×H） |
Net weight | 4.55Kg |
