Save:$ 0.004GE+2VOIP+CATV+2.4G$5G WIFI(external antennas)

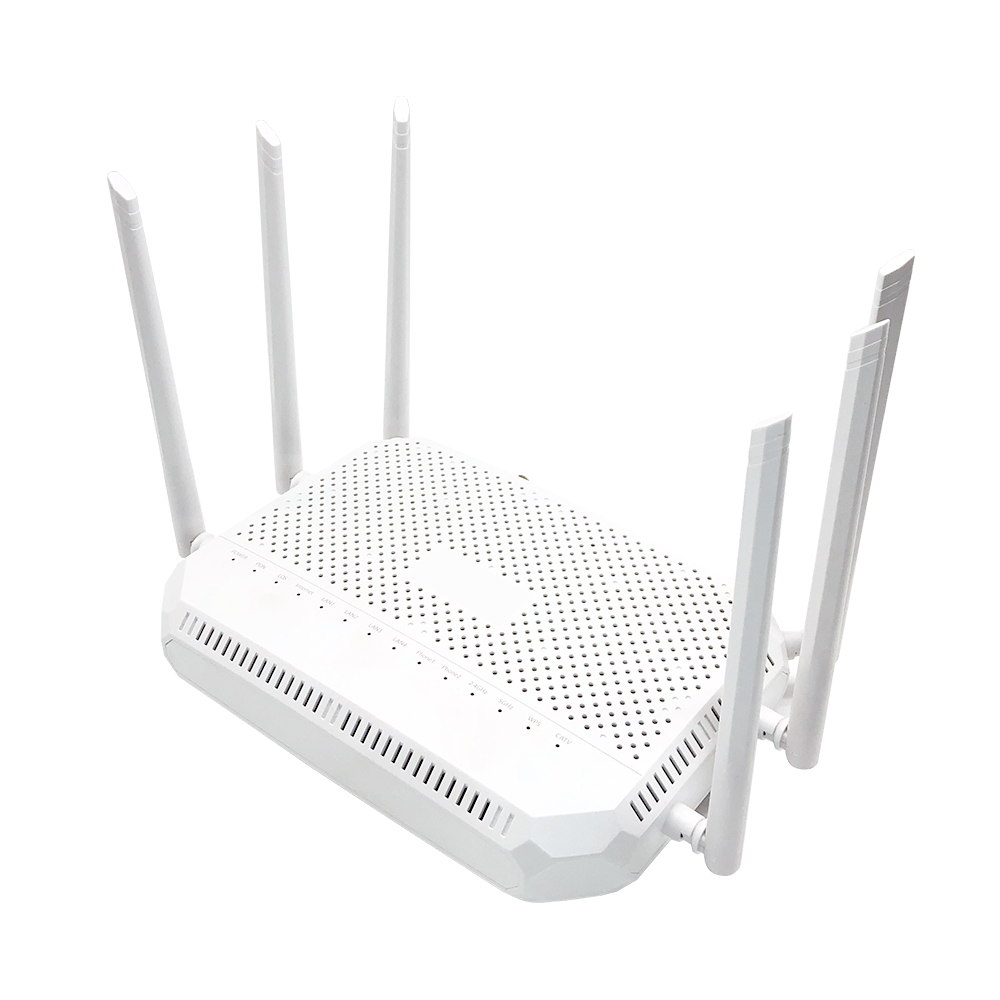

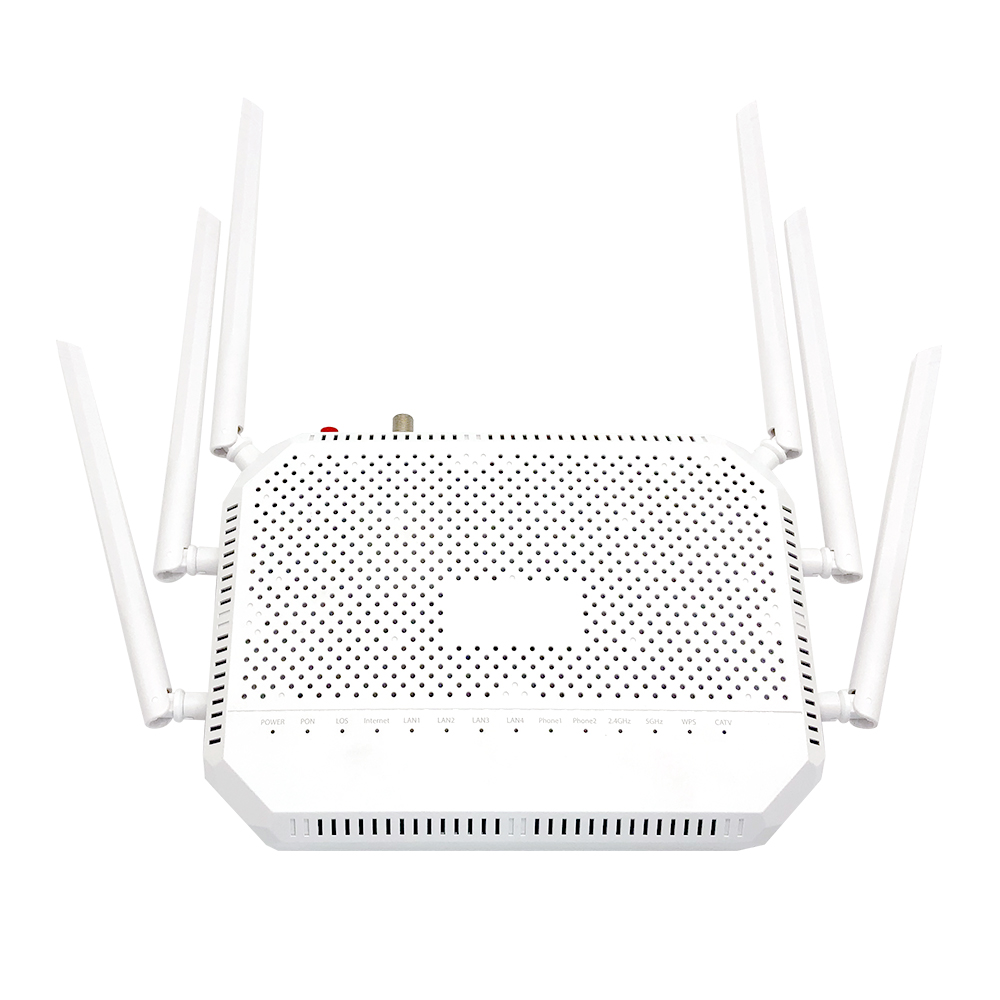

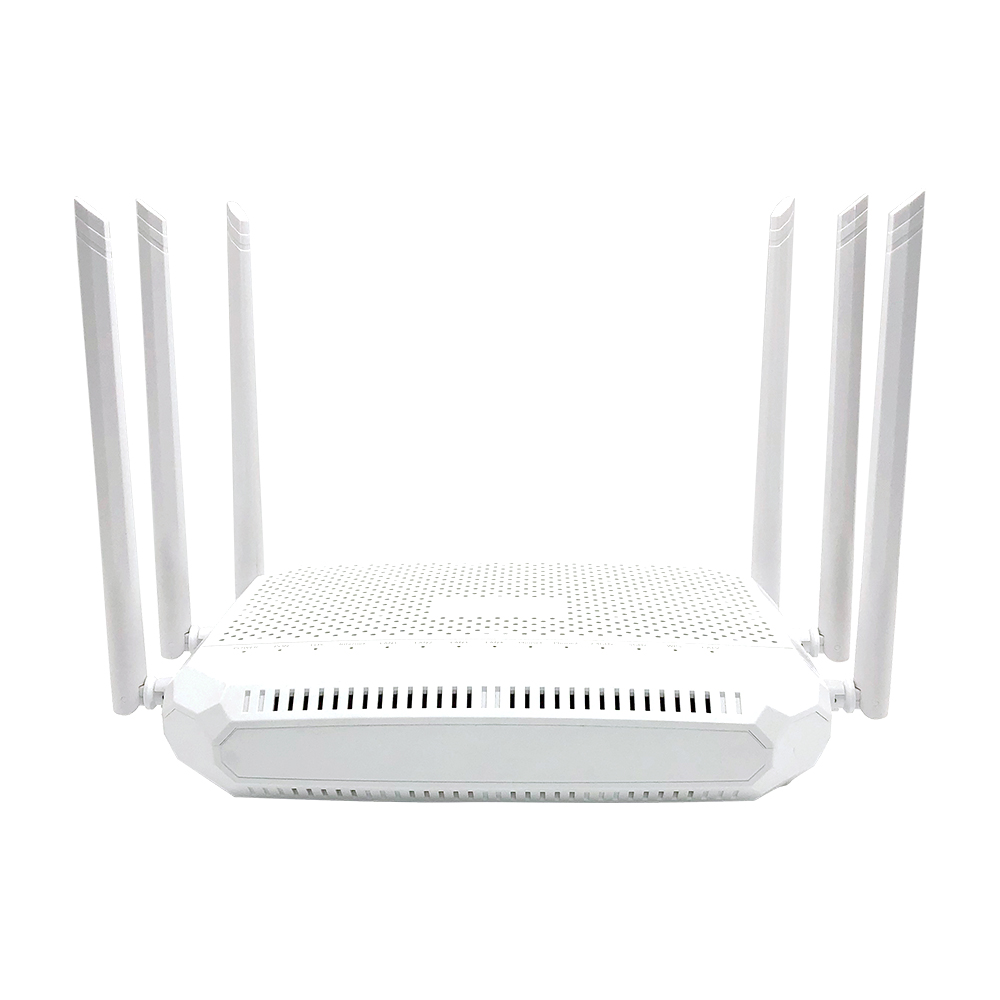

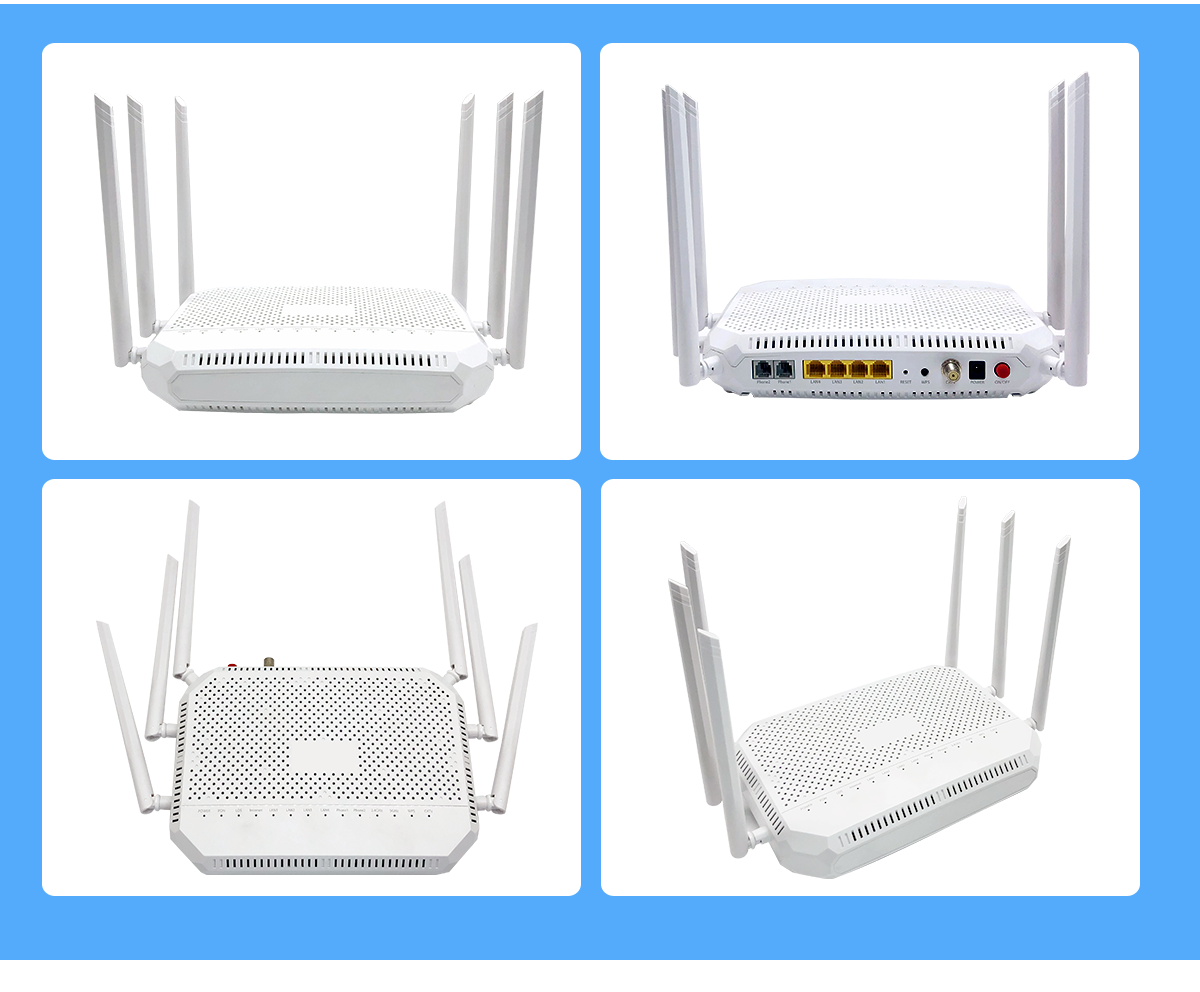

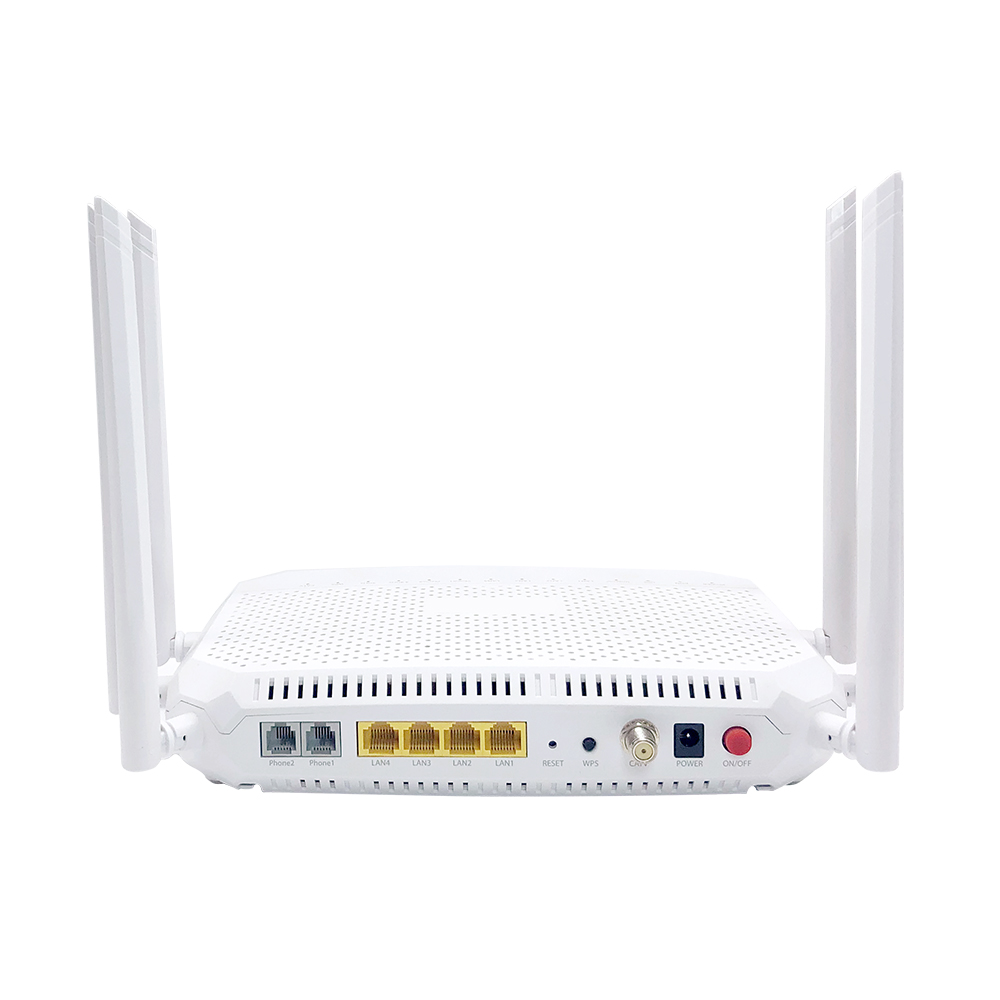

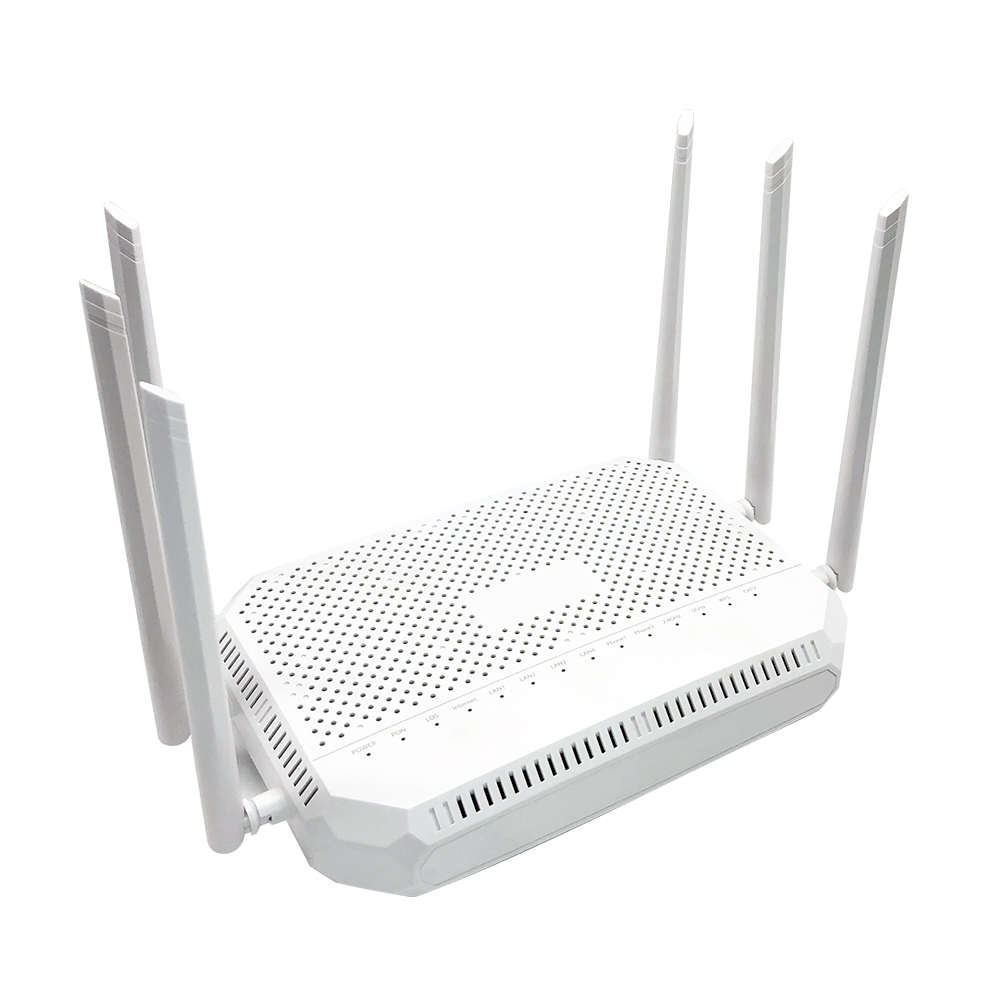

SL-821T is dual-mode(XPON) ONT designed for delivery of telephone services, IP-based data services, Voice(VoIP) services,IPTV video services, and CATV video services to single-family home and small office/home office (SOHO) users. SL-821T supports automatic switching between GPON and EPON modes, offers 4 Gigabit Ethernet ports, 2 FXS ports, Wireless 11n 2.4GHz (2x2) and 11ac 5GHz (4x4) dual band concurrent, 1 CATV port. SL-821T is designed for indoor installation and can be desktop or wall-mounted. A single optical fiber carries upstream and downstream traffic over the PON between the OLT and the ONT. SL-821T is fully provisioned and managed from the OLT using PLOAM/OMCI and TR069.
WiFi signals are Coverage Throughout the house

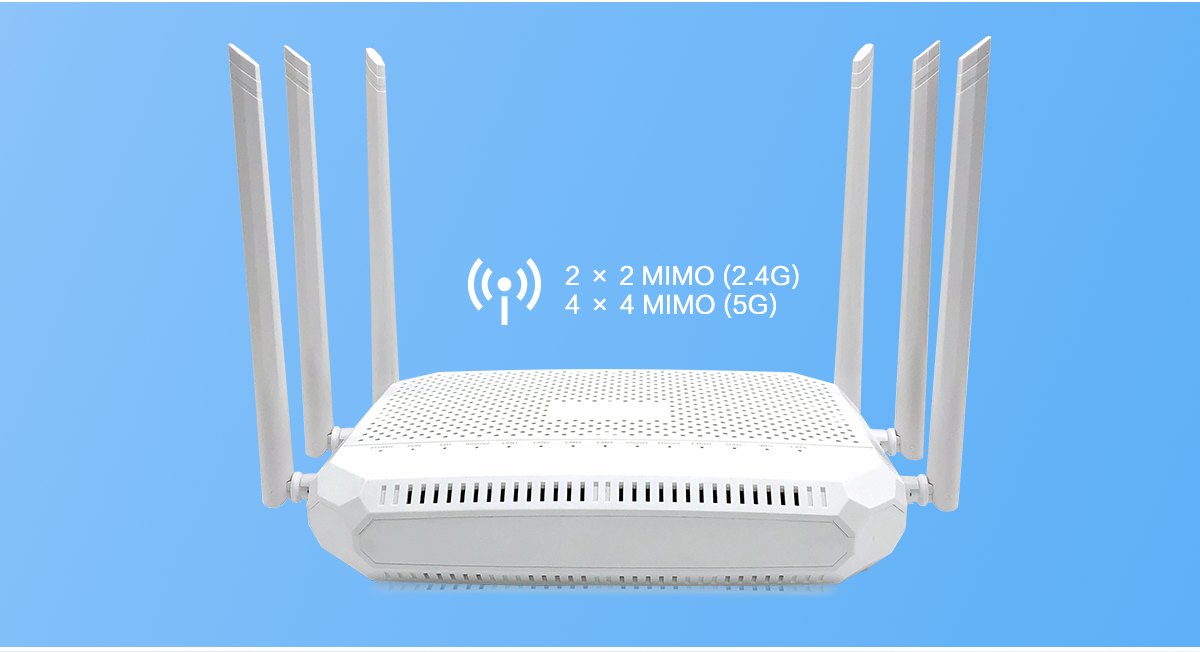

External 6x 5dBi high gain antenna, through scientific and professional layout, through accurate debugging, set the best isolation interval between antennas, greatly reduce signal overlap, convenient signal transmission, so that the signal coverage is wider, the signal is stronger!
Connect More,Stay Fast
Powerful network connection function, can connect TV, computer, laptop, mobile phone, mobile phone or fax and other wireless devices, so that multiple clients enjoy smooth games, video streaming and live streaming at the same time.
PON interface(NNI):1 x PON interface | ||
Optical port | GPON/EPON mode adaptive
ITU-T G.984 GPON standards,Support for backward compatibility with IEEE 802.3ah EPON
Single mode fiber
| |
Optical connector | SC/APC | |
Receiving Sensitivity | -28dBm | |
Overload optical power | -8 dBm | |
Transmitting Optical Power | 0.5~5dBm | |
Transmit rate | GPON:2.488Gbps downstream; 1.244Gbps upstream
EPON:1.25Gbps downstream;1.25Gbps upstream
| |
Wavelength | Receiving(DOWN):1490nm;Transmitting(UP):1310nm | |
Authentication | consistent with the SN or Password authentication defined in G.984.3;LOID authentication;MAC authentication | |

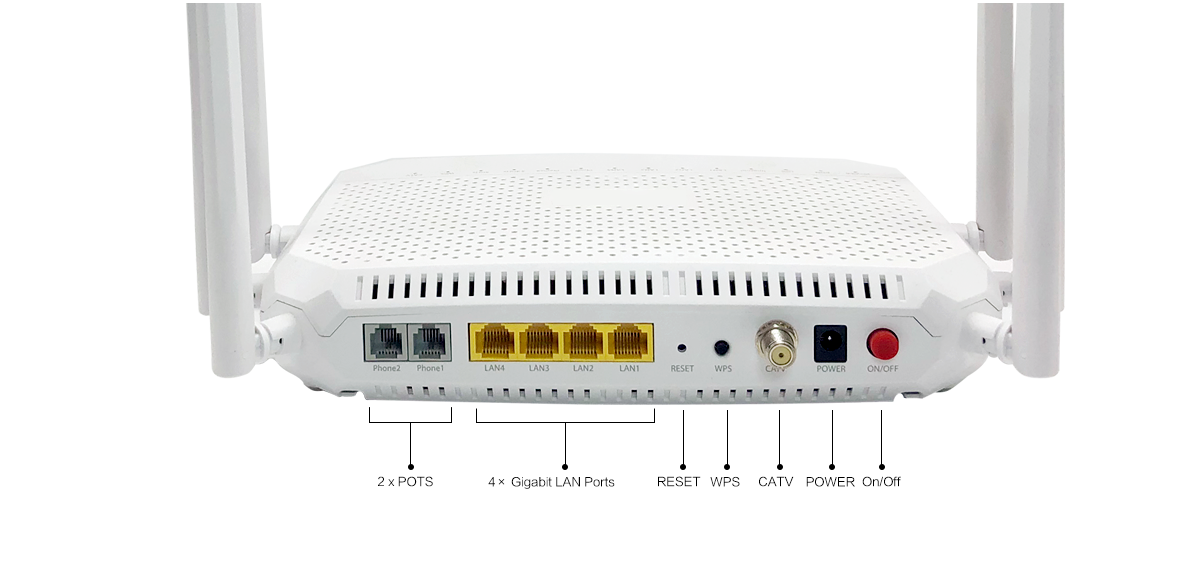

n User Network Interface(UNI):4GE+2.4G&5G WIFI+1USB | ||
Ethernet Port | • Ethernet port-based VLAN tags and tag removal | |
| • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission | |
| • QinQ VLAN | |
| • MAC address learning | |
| • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s | |
WLAN | • IEEE 802.11 b/g/n (2.4G) | |
| • IEEE 802.11 a/n/ac (5G) | |
| • 2 × 2 MIMO (2.4G&5G) | |
| • Antenna gain: 5 dBi,4*extenal antenna | |
| • 2.4G&5G concurrent | |
| • Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G) | |
USB port | • USB2.0,USB backup |
Product Function | |
Smart interconnection | • Smart Wi-Fi coverage |
• SIP | |
• Any port any service | |
• Parental control | |
• L2/L3 forwarding: 1G uplink, 2G downlink | |
Layer 3 Features | • PPPoE/Static IP/DHCP/Bridge |
• NAT/NAPT | |
• Port forwarding | |
• ALG, UPnP | |
• DDNS/DNS server/DNS Client | |
• IPv6/IPv4 dual stack,DS-Lite and IPv6 SPI | |
• Static/Default routes | |
• Multiple services on one WAN port | |
Multicast | • IGMP v2/v3 proxy/snooping |
• MLD v1/v2 snooping | |
Qos | • 802.1P priority |
• Ethernet port rate limitation | |
• Broadcast packet rate limitation | |
• SP/WRR/SP+WRR | |
Security | • Firewall |
• Filtering based on MAC/IP/URL addresses | |
Common O&M | • OMCI/TR069/Web UI |
• WAN-Side/LAN-Side Http/Https/Telnet/Ftp/Tftp/Ping Protocol | |
Smart service | • WPS,WLAN Sharing |
Physical Performance | |
Dimensions (H x W x D) | 41mm*184mm*139mm |
Working temperature | 0°C ~ 40°C |
Working humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 V AC, 50 / 60 Hz |
System power supply | 12V DC, 1.5 A |
Power consumption | <15W |
System Configuration |
|
Main chip | EN7528DU/DA |
RAM | 256MB |
Flash | 128MB |
WiFi Chip | MT7592N(2.4G WIFI); MT7613BEN(5G WIFI) |
